SPECIFICATIONS

AC Charging Input: 2000W - 2500W

Application: Solar Power Storage

Battery Core manufacturer: EVE

Battery Number: 1

Brand Name: IEE INITIAL ENTROPY ENERGY

Bundle: Bundle 1

Certification: CE

Connection: Bluetooth-Compatible

Display screen: Yes

High-concerned chemical: None

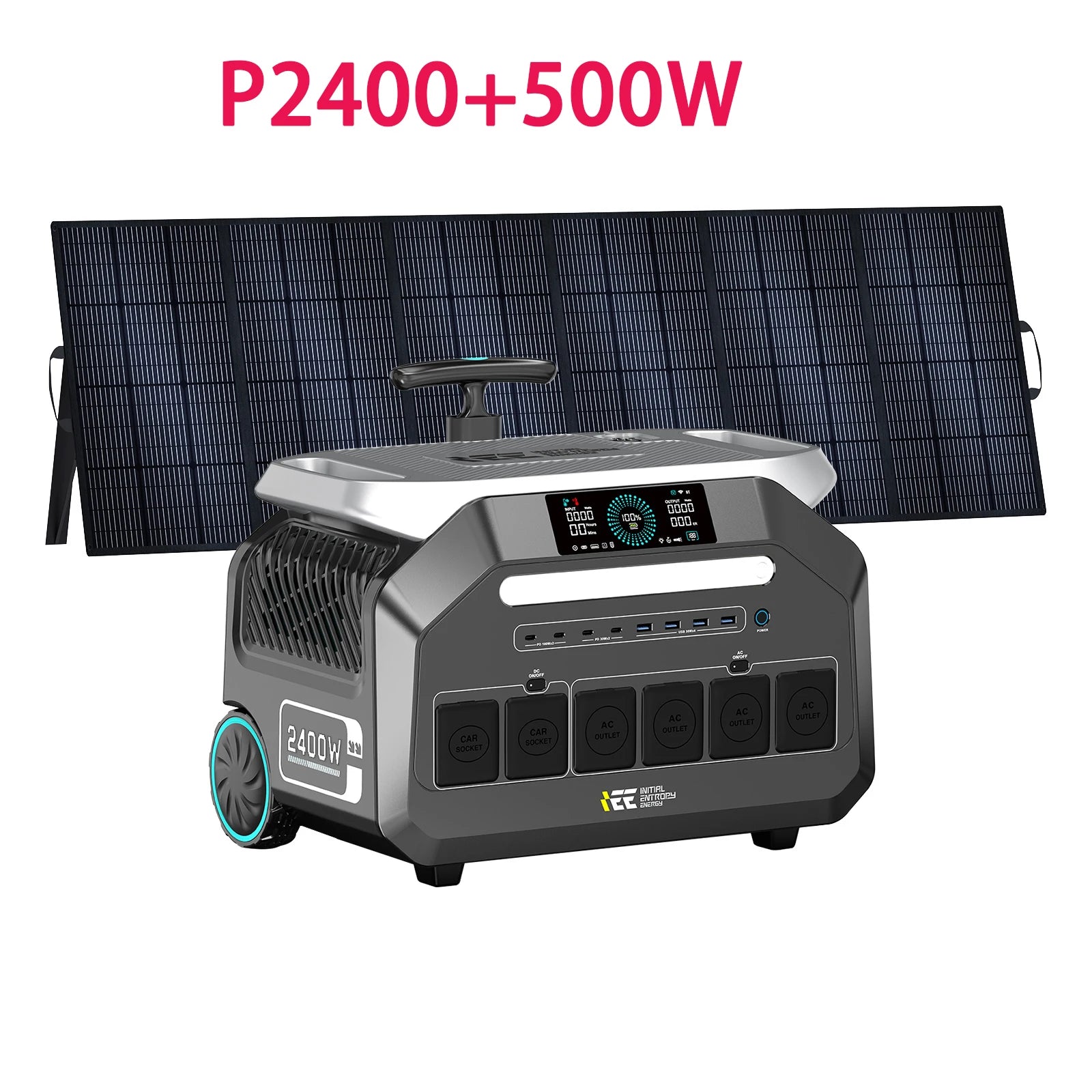

Model Number: IEE P2400+500w Solar Panel

Net Weight: 30kg - 50kg

Nominal Capacity: 2048Wh

Origin: Mainland China

Replacement Battery: No

Set Type: Charger Sets

Size: 54*37.9*43.9cm

Solar Charging Input: 500W - 1000W

Type: LiFePO4

[Large Capacity 2048Wh/2400W High Output]

It has a capacity of 2048Wh and provides 4*AC output, 2400W(Surge 5000W),23% lighter and smaller than conventional products with the same capacity. It weighs only 24kg and is easy to carry. Plenty of battery capacity for multiple nights of camping or during power outages. You can get through it with just this one! Effective for preparation at home and use by a large number of people in offices and local governments. You can use most electrical appliances with an output of 2000W, including electric blankets, laptops, hair dryers, electric kettles, and microwave ovens.

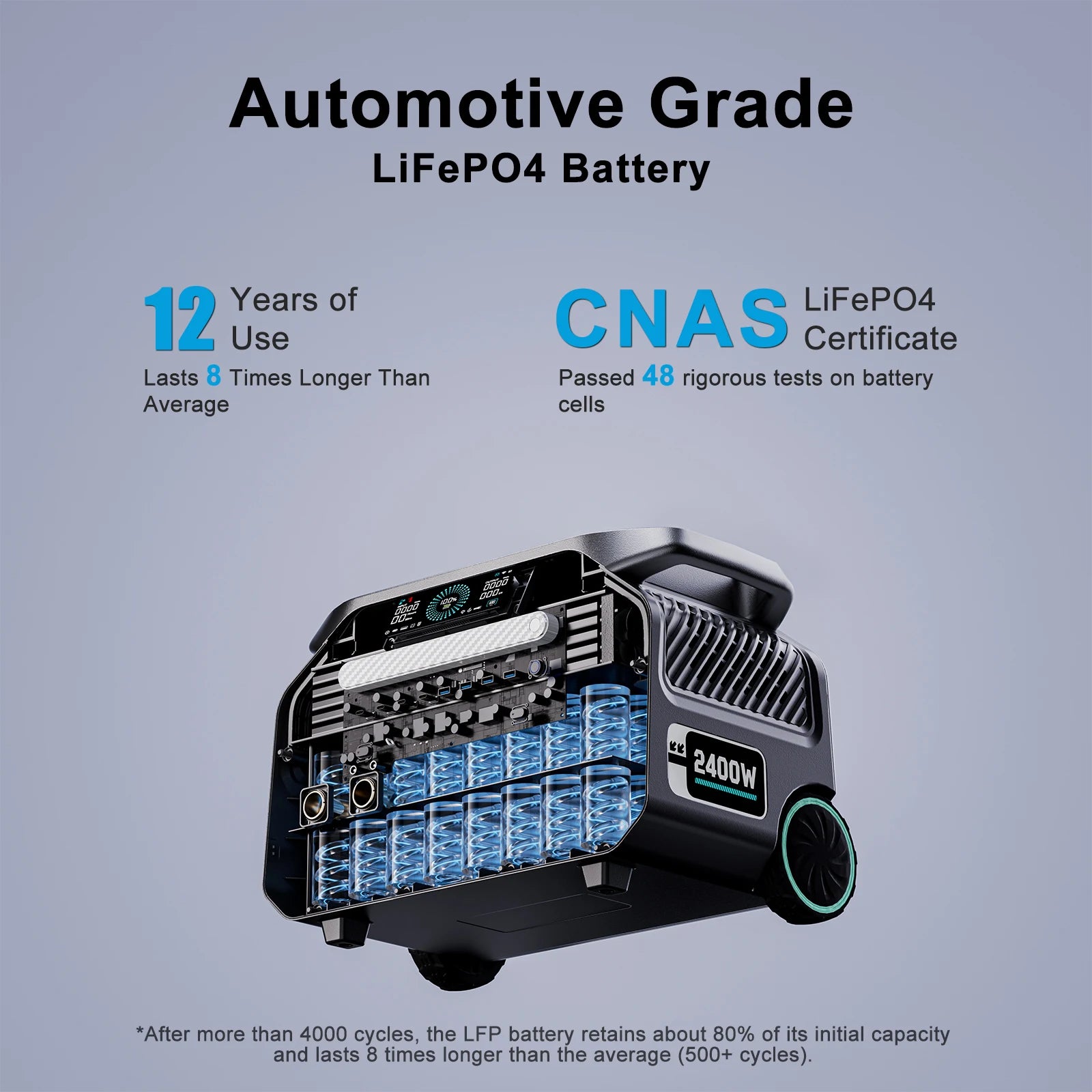

[Uses high-quality LiFePO4 battery]

The built-in battery uses a lithium iron phosphate battery (LiFePO4) that lasts 15 years with over 4000 charge/discharge cycles. It lasts seven times longer than conventional batteries and costs less. It also has a battery management system (BMS) and control unit (MCU) to manage battery cell voltage and temperature.

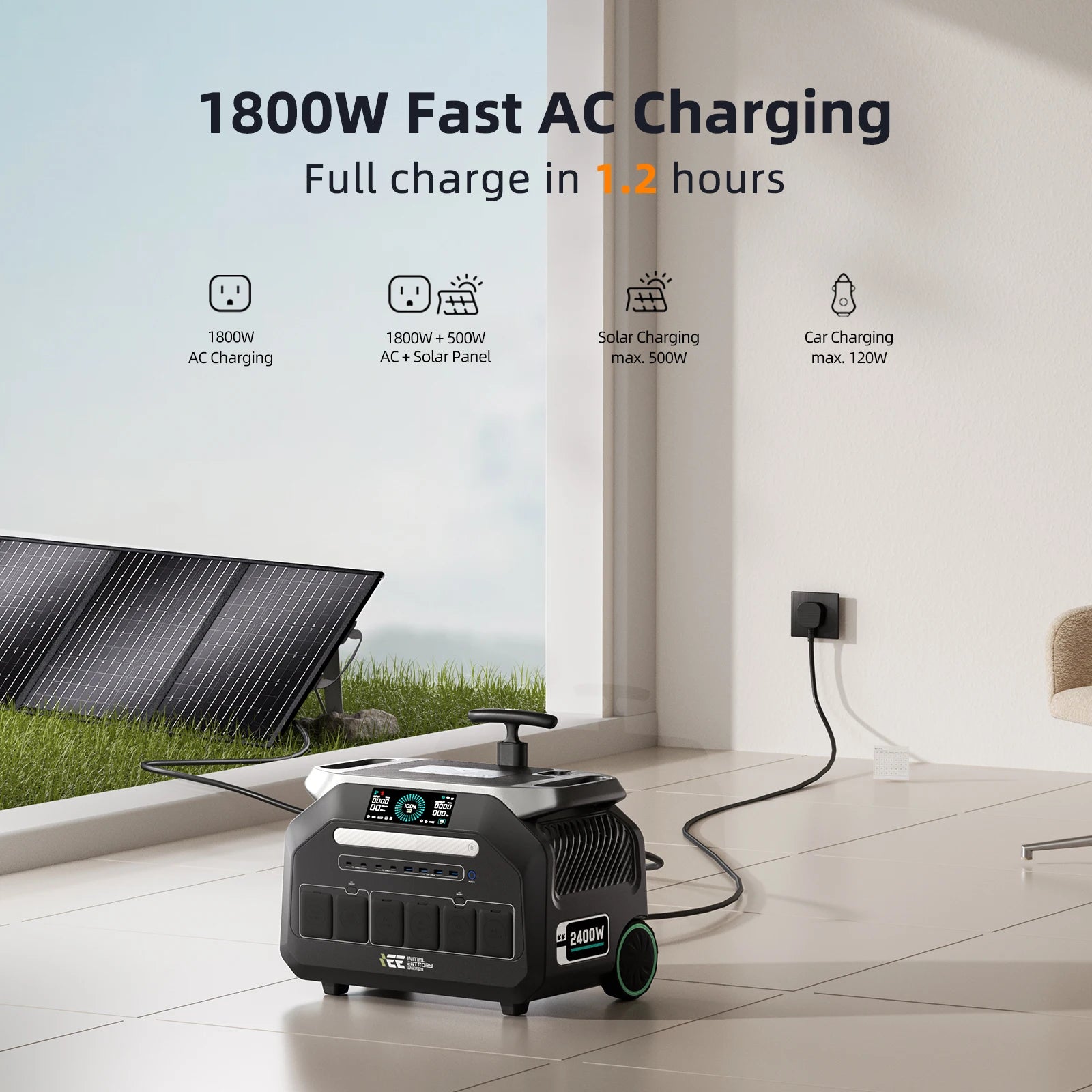

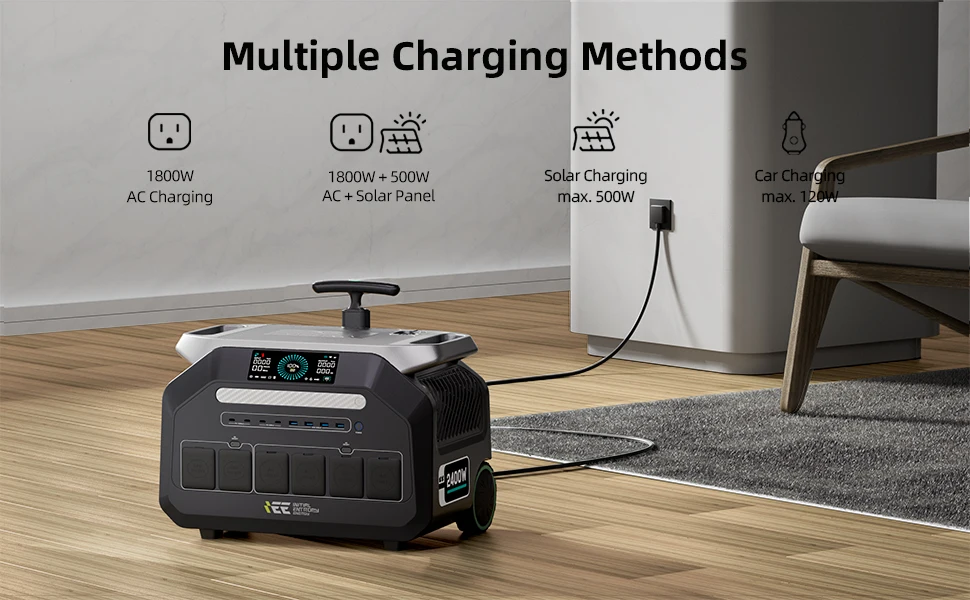

[Recharge in a Rush]

With 1800W AC charging, achieve 80% battery capacity in just 1 hour and a full charge in 1.5 hours. Combine solar and AC input up to 2300W to achieve 80% battery capacity in just 70 minutes and a full charge in 2 hours

[Empower Your Home and Adventures]

With 2048Wh and 2400W rated power, this device can power 99% of appliances through 16 versatile outlets (4 AC outlets, 4 USB-A quick charge 30W ports, 4 USB-C PD ports [30W, 100W], 2 DC outlets, and 2 cigar lighter). It is ideal for outdoor off-grid activities and as home backup power for most appliances, phones, laptops, power tools, cooking utensils, vehicle-mounted products, and remote-controlled aircraft.

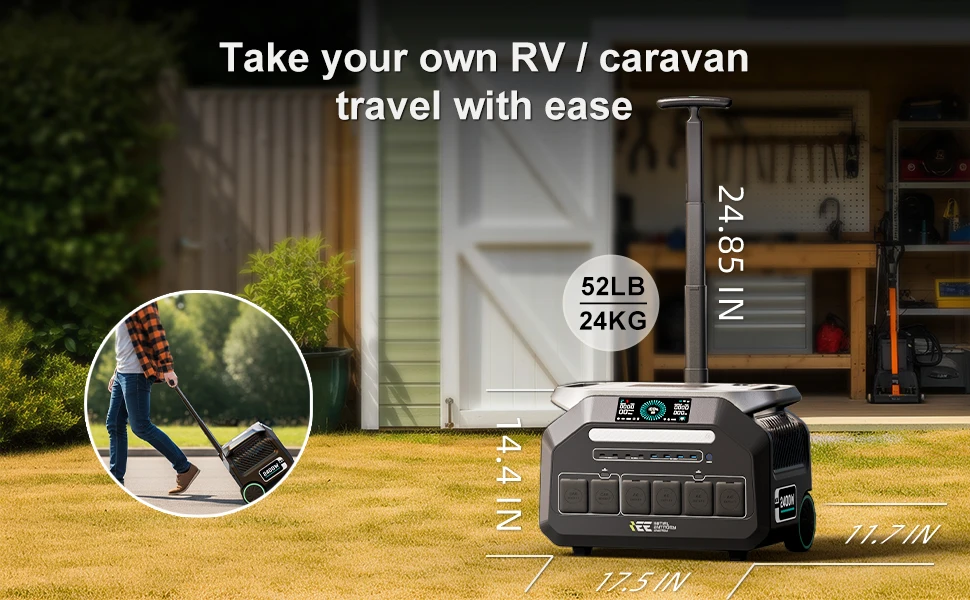

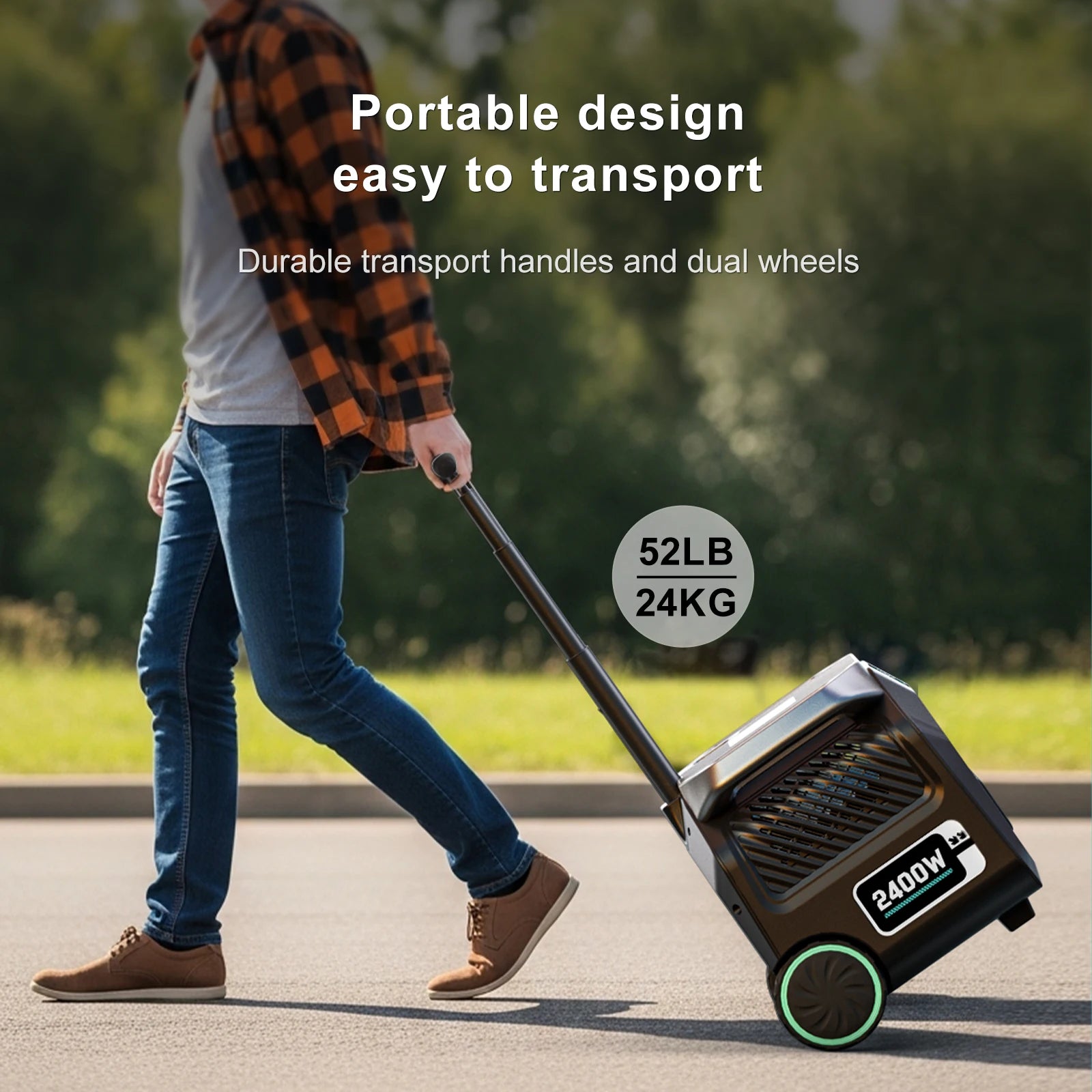

[Convenient To Carry]

More trolley functions than traditional 2048Wh capacity power stations, suitcase style design, easy to hold and comfortable, ready to go, equipped with high-quality traction bar and 2 removable wheels for easy movement. IEE lifepo4 power station can be used continuously for a week without electricity, in case of emergency.

[IEE 5-Year Warranty]

This portable power supply has a UPS (uninterruptible power supply), which allows devices connected to an AC outlet to be connected to commercial power. It provides power directly, but if there's a power outage, it switches to the P2400 battery in 0.1 seconds. We've made it more practical by protecting against power cuts due to disasters and buying time to continue operations or shut down safely. If your product malfunctions within five years, contact IEE for a return or refund.

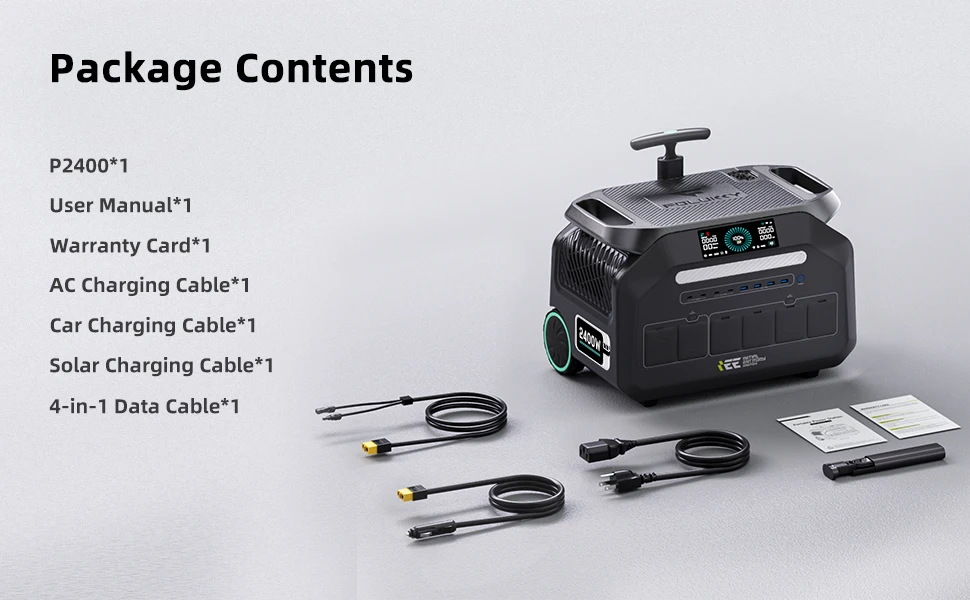

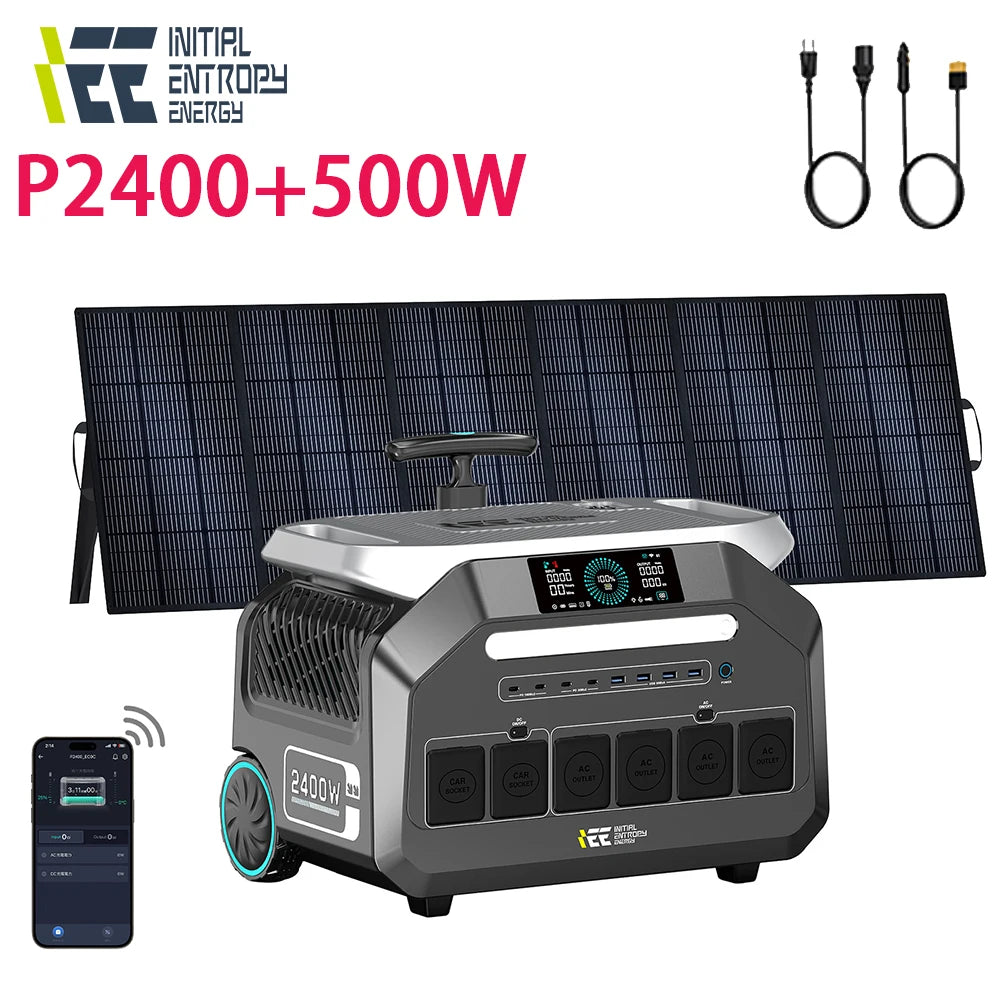

[What You Get]

Package contents: P2400 portable power station, AC charging cable, solar charging cable, 4-in-1 data cable, Car charging cable（Japanese standard no line) ,instruction manual,Warranty card.（Note: Due to the heavy weight of the product, the power station and solar panels will be delivered in separate packages）

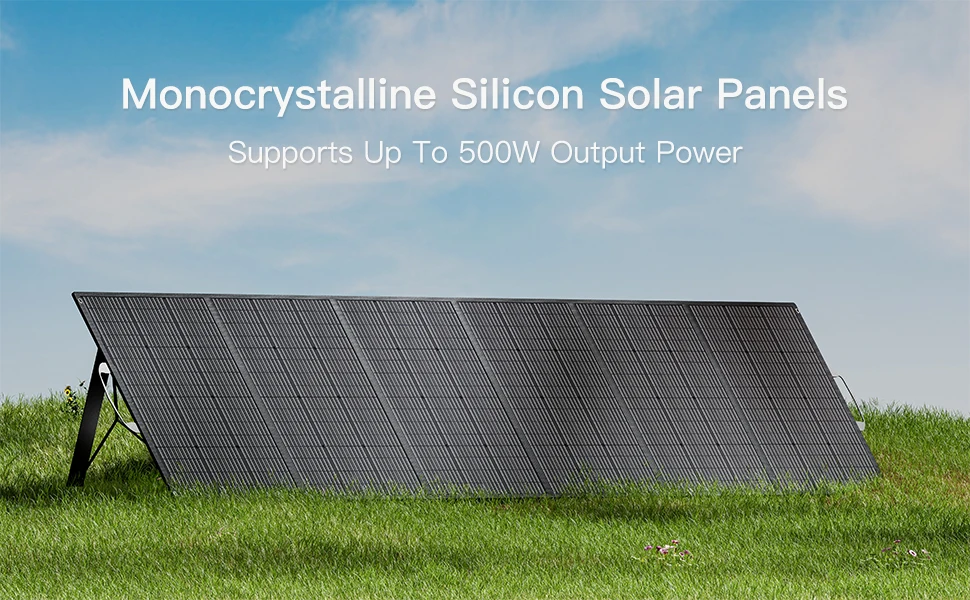

500W Solar Panel:

With a maximum output of 500W (Pm), the 500W solar panel is capable of rapidly charging a multitude of devices. The 500W solar panel offers dependable power support during outdoor activities or as a backup power source for the home.

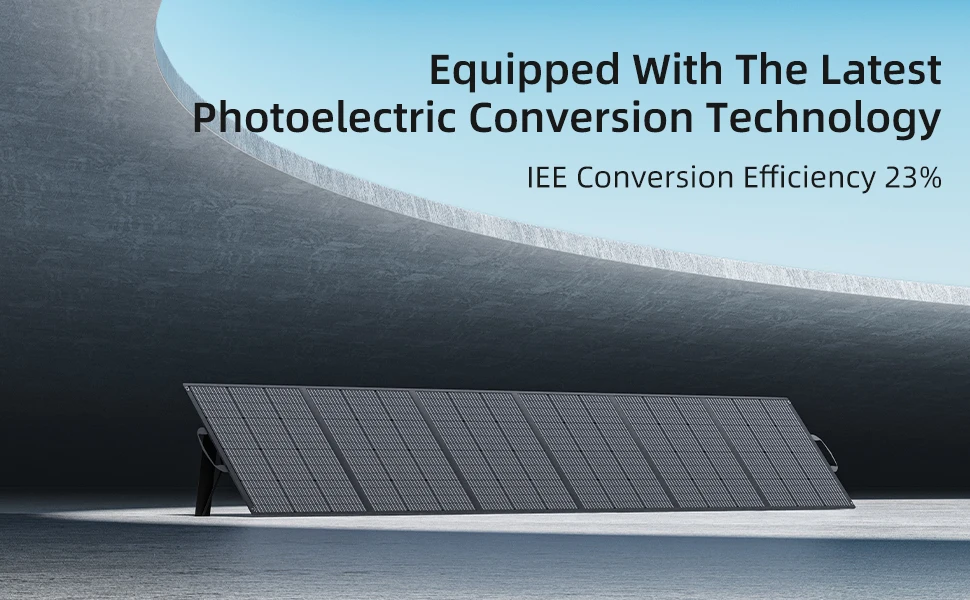

High Conversion Efficiency:

The 500W solar panel, featuring ETFE film and monocrystalline silicon, achieves up to 23.4% conversion efficiency. Its design enhances light absorption and efficiency, providing reliable electricity even in low light. This green energy solution eliminates the need for fuel-based generators by harnessing solar power.

The product's versatile design allows for a variety of applications.

The 500W solar panel features Six foldable panels. The unfolded size is (3570*691*30MM), and the lightweight design of 13.85kg.makes it easy to carry when moving. The product is suitable for a wide range of applications, including camping, hiking, disaster prevention, and more.

A stable power supply is essential for optimal performance.

The 500W solar panel provides an output voltage of up to 28.8V (max) and an output current of up to 22.5A (max), ensuring a reliable power supply. Furthermore, the open circuit voltage (Voc) is 24V and the short circuit current (Isc) is 20.83A, which ensures stable power supply even in the event of a damaged solar panel.

The 400W solar panel is designed to operate in a wide ambient temperature range of -10℃ to 70℃.

Furthermore, the optimal operating temperature is +25°C, which allows for efficient charging even at high temperatures. Furthermore, the product is backed by a five-year warranty, providing customers with added confidence in its performance.

Solar panels that can be connected in series or parallel.

solar charger can be connected in series (increasing voltage) or in parallel (increasing current) using multiple panels (up to three panels). The specific adjustment will be based on the acceptable power range of solar charging at the power station. Should you require assistance with the connection process, please do not hesitate to contact us.

Project                             Parameters

Open Circuit Voltage (Voc)   28.8V±5%

Operating Voltage (Vmp)      24V±5%

Short Circuit Current (Isc)     22.5A±5%

Operating Current (Imp)       20.83A±5%

Power (Pm)                           500W±5%

Conversion Efficiency (EFF)  Cell Conversion Efficiency ≥23%

Solar Cell Material (Cell)       Monocrystalline Silicon

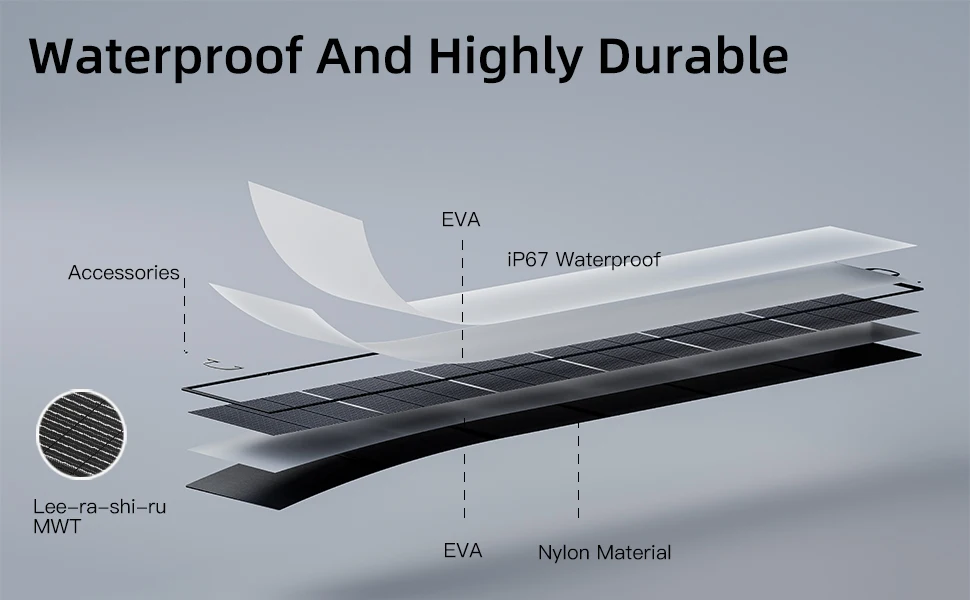

Encapsulation PET+EVA+Cell+PCB+Waterproof Fabric

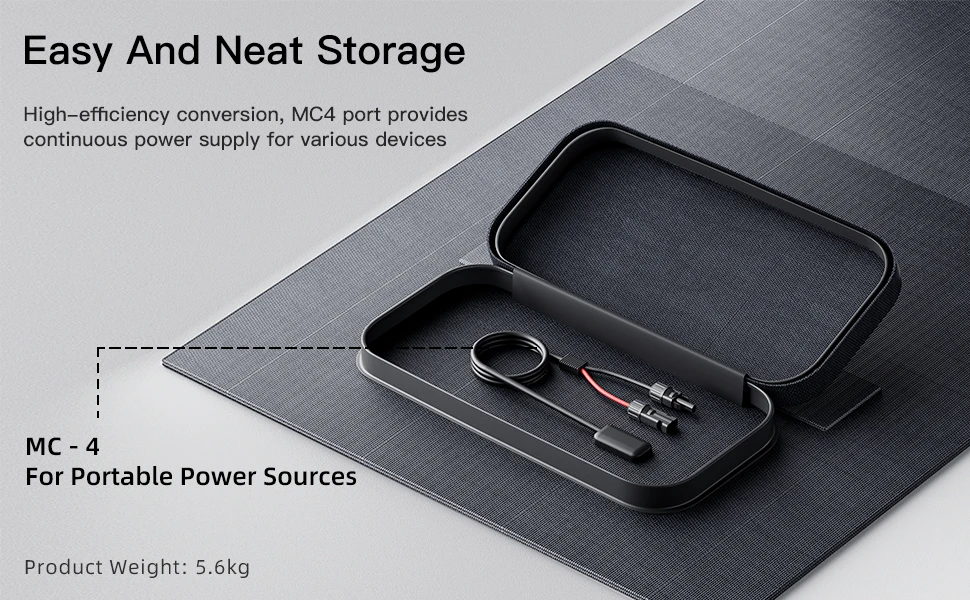

Output Cable Requirements 12# Photovoltaic Cable 0.9M Long MC4 Connector

Unfolded Dimensions 3570*691*30*±1mm

Weight :13.85kg±5%

Operating Temperature :-10～70℃

Package Details

1X 500W Solarpanel:

Solar panel*1
